As a premier manufacturer and supplier of professional audio equipment, we engineered the Intelligent Network Sound Amplification System KE4E10S to dominate large-scale venues. Designed for system integrators, project contractors, and enterprise-level deployments, this powerhouse delivers uncompromising acoustic fidelity, remote monitoring and operational control.
Complete turnkey setup: Includes amplification, full-range, and low-frequency components.
Enterprise-grade output: Exceeds 6800W maximum power for massive headroom.
Seamless digital integration: Native support for Dante, AES, and advanced DSP onboard.
Self-developed PC monitoring
Discover a sound reinforcement solution where raw acoustic power meets sophisticated digital intelligence, designed specifically to solve the complex challenges of modern audio engineering.

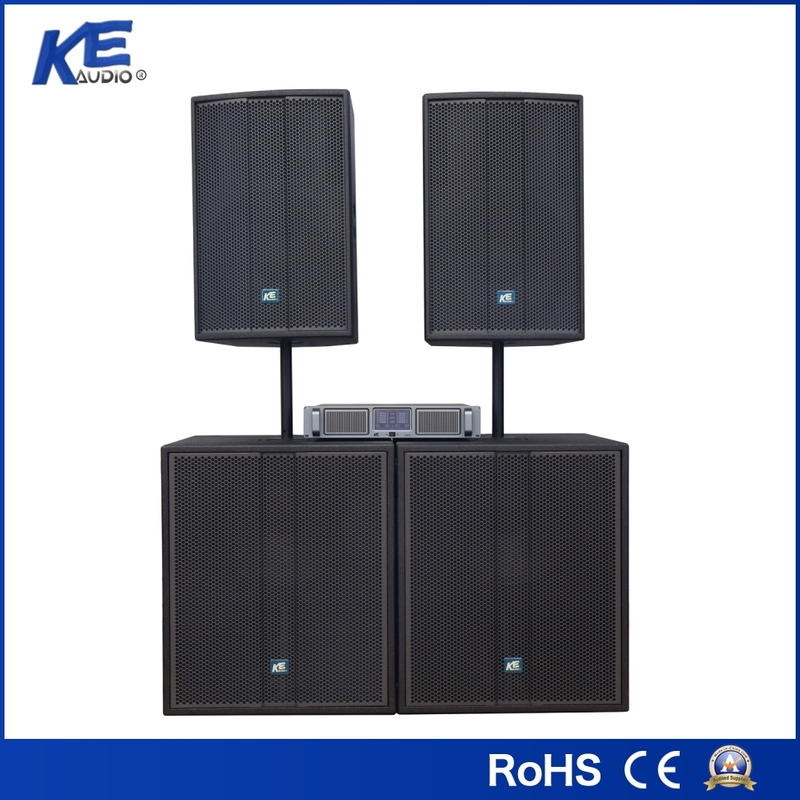

✓ KE4E10S component: 2 x full range loudspeakers KE-15, 2 x LF loudspeakers KE-18, 1 x intelligent network power 4 channels amplifier KE4E10 and accessories.
✓ System maximum sound pressure: ≥140dB.
✓ System effective interval: ≥50m.
✓ System maximum power: ≥6800W
✓Digital-analog TD class amplifier
✓ Amplifier Power (RMS:8Ω): 1000W
✓ 4 channels amplifier
✓ Built in DSP
✓ Support Dante, AES, Signal backup, PC remote monitoring, Central control, Intelligent control of audio system.
✓ Suitable for all-weather use
✓ Midrange is resonant and the treble is clear, with remarkable projection. The Farther, the Better.
✓ Applicable to a wide range of scenarios including military training grounds, school playgrounds, city squares, stadiums, airports and stations, outdoor performances, and tourist attractions.
For large-scale installations and demanding live events, raw power and precise dispersion are non-negotiable. This system is engineered to conquer massive acoustic spaces with absolute ease, ensuring every listener receives a premium audio experience.
Massive Output Capacity: Boasting a maximum system power of over 6800W, it delivers the massive headroom necessary for dynamic, high-impact audio without clipping.
Extreme Sound Pressure: Generating peak SPLs of ≥140dB, the system guarantees that every sonic detail cuts through the roar of a stadium crowd or the ambient noise of a city square.
Long-Throw Capabilities: With an effective coverage interval exceeding 50 meters, the system ensures uniform sound distribution from the front row to the back bleachers, proving that the farther the throw, the better the performance.
Modern sound reinforcement requires absolute control. This system puts a sophisticated digital command center at the fingertips of audio engineers, streamlining complex workflows.
Precision Tuning: The built-in high-performance DSP allows for granular adjustments, including importable and customizable FIR filters, ensuring perfect phase alignment.
Remote PC Monitoring: Allows remote monitoring of the amplifier’s operating status (voltage, current, power, impedance, and temperature) from PC.

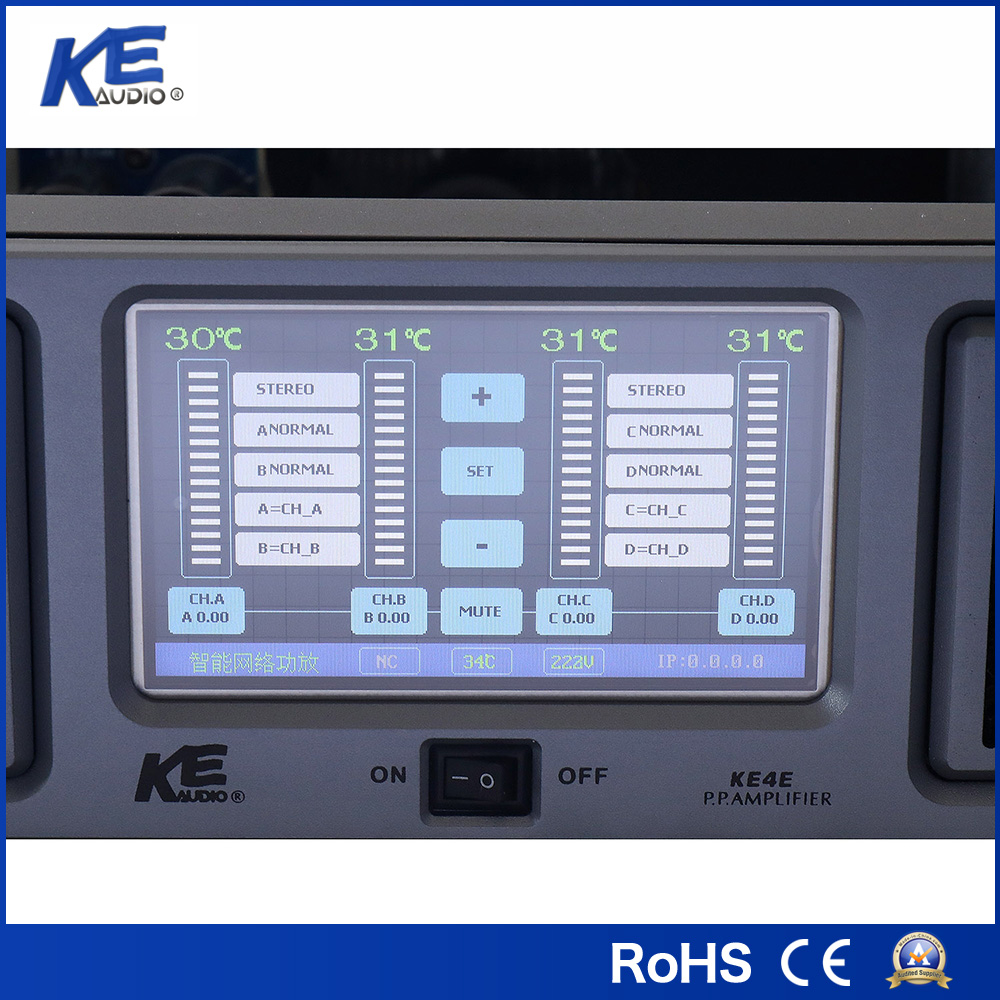

Intuitive Touch Interface: A vibrant color screen with touch control provides immediate access to critical parameters, featuring an automatic screen darkening and locking mechanism (180s) to prevent unauthorized tampering.
In mission-critical environments, silence is simply not an option. We have engineered multiple layers of fail-safes into the KE4E10S to provide operators with unparalleled peace of mind.
Automated Protection Protocols: Built-in Automatic Gain Control (AGC) and intelligent temperature monitoring actively protect the transducers and amplifier circuitry from unexpected voltage spikes or thermal overload.
Real-Time Diagnostics: Utilize optional features for continuous monitoring of speaker data, dynamic load on/off status, voltage, current, and impedance, allowing technicians to preemptively address issues before they impact the performance.
The soul of this system lies in its uncompromising hardware architecture, blending the extreme efficiency of digital power with the rich, warm tonality of analog circuitry.

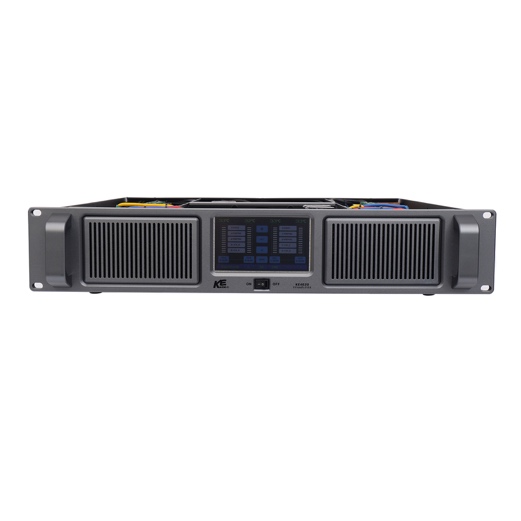

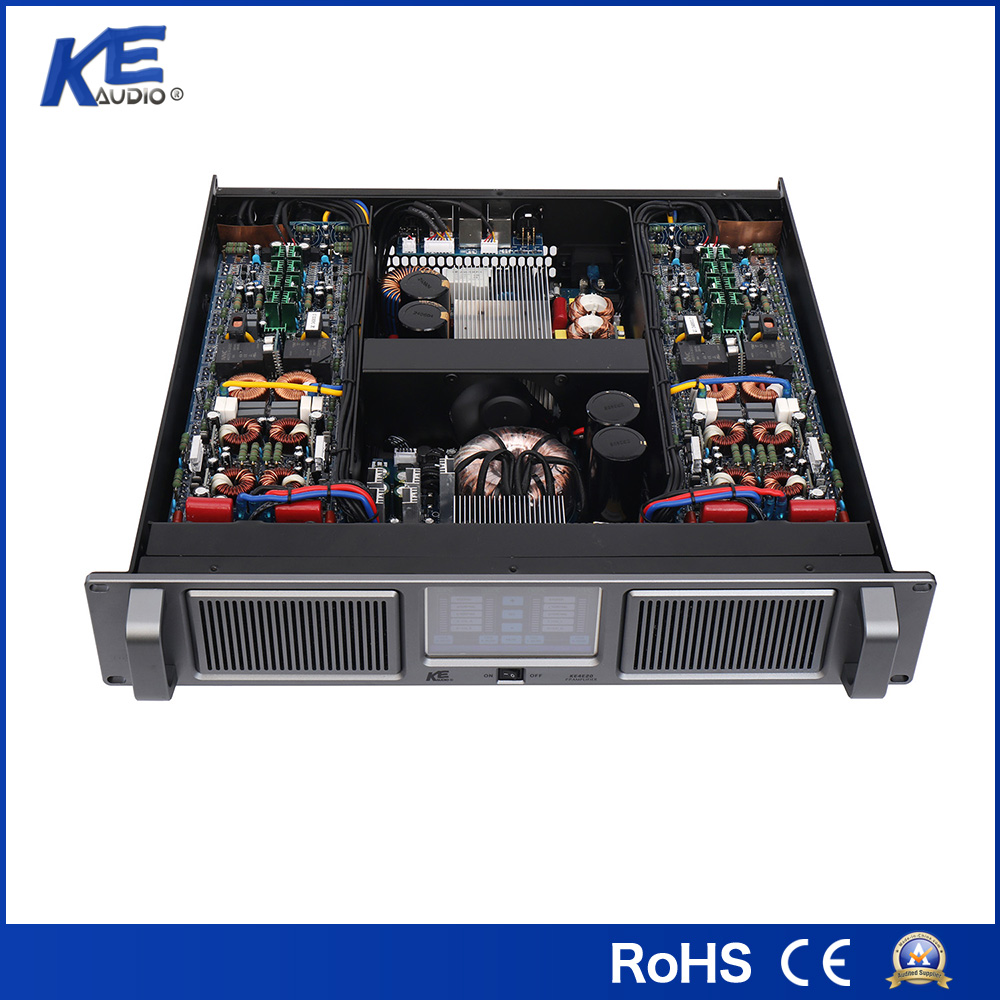

TD Class Amplification: The KE4E10 amplifier utilizes a digital-analog hybrid design, delivering the high conversion efficiency of Class D with the sonic purity traditionally reserved for Class AB amplifiers.

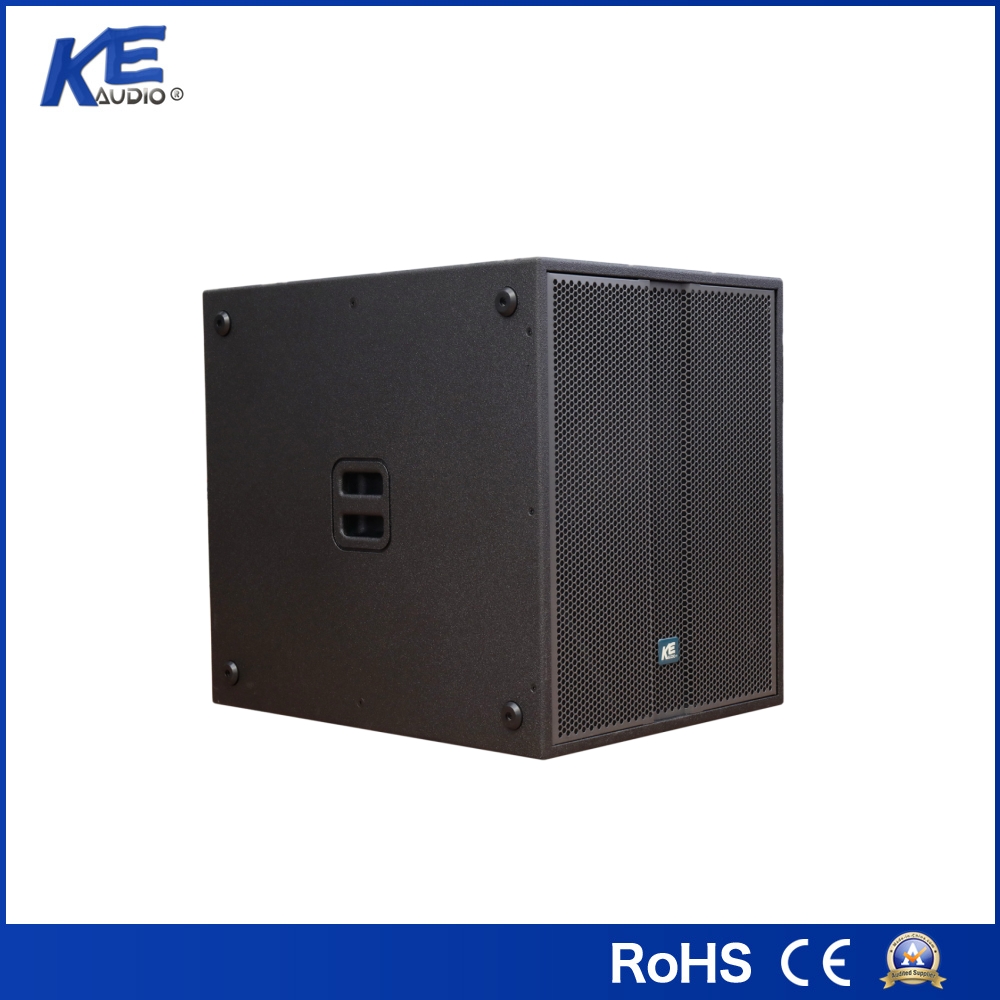

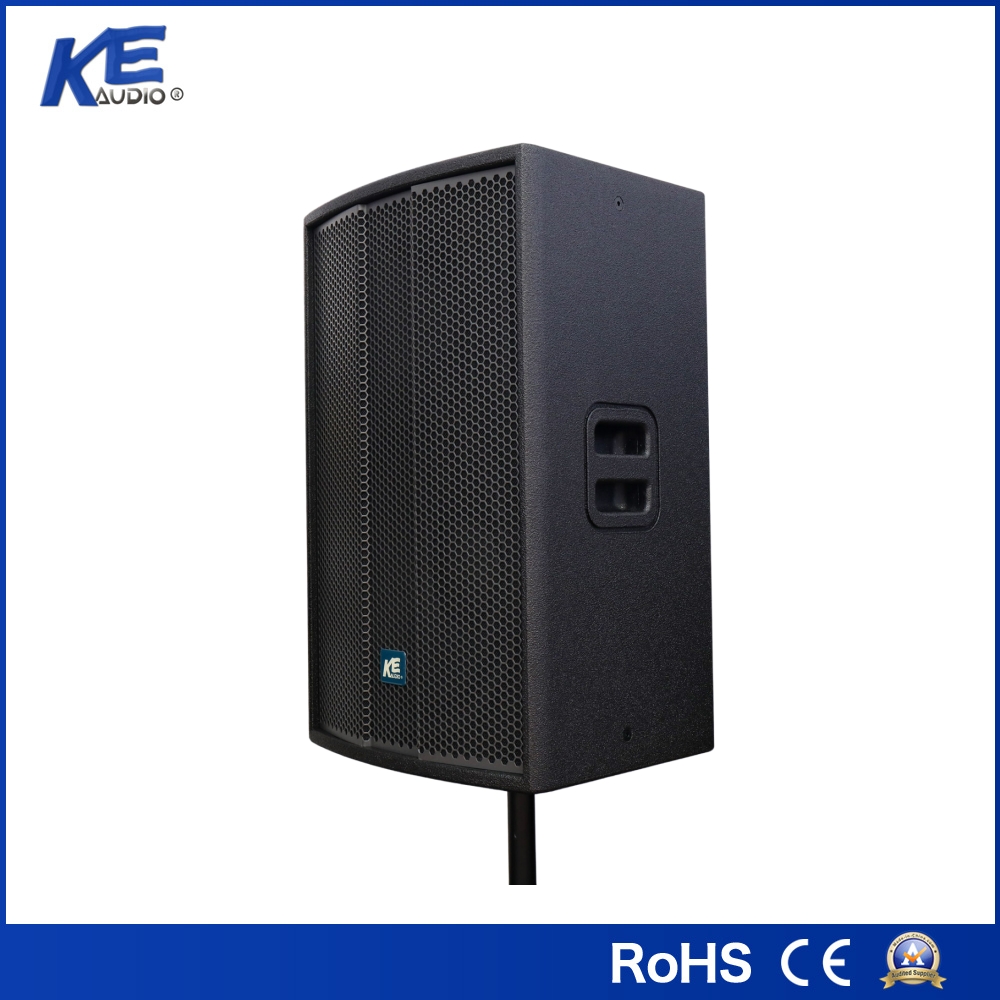

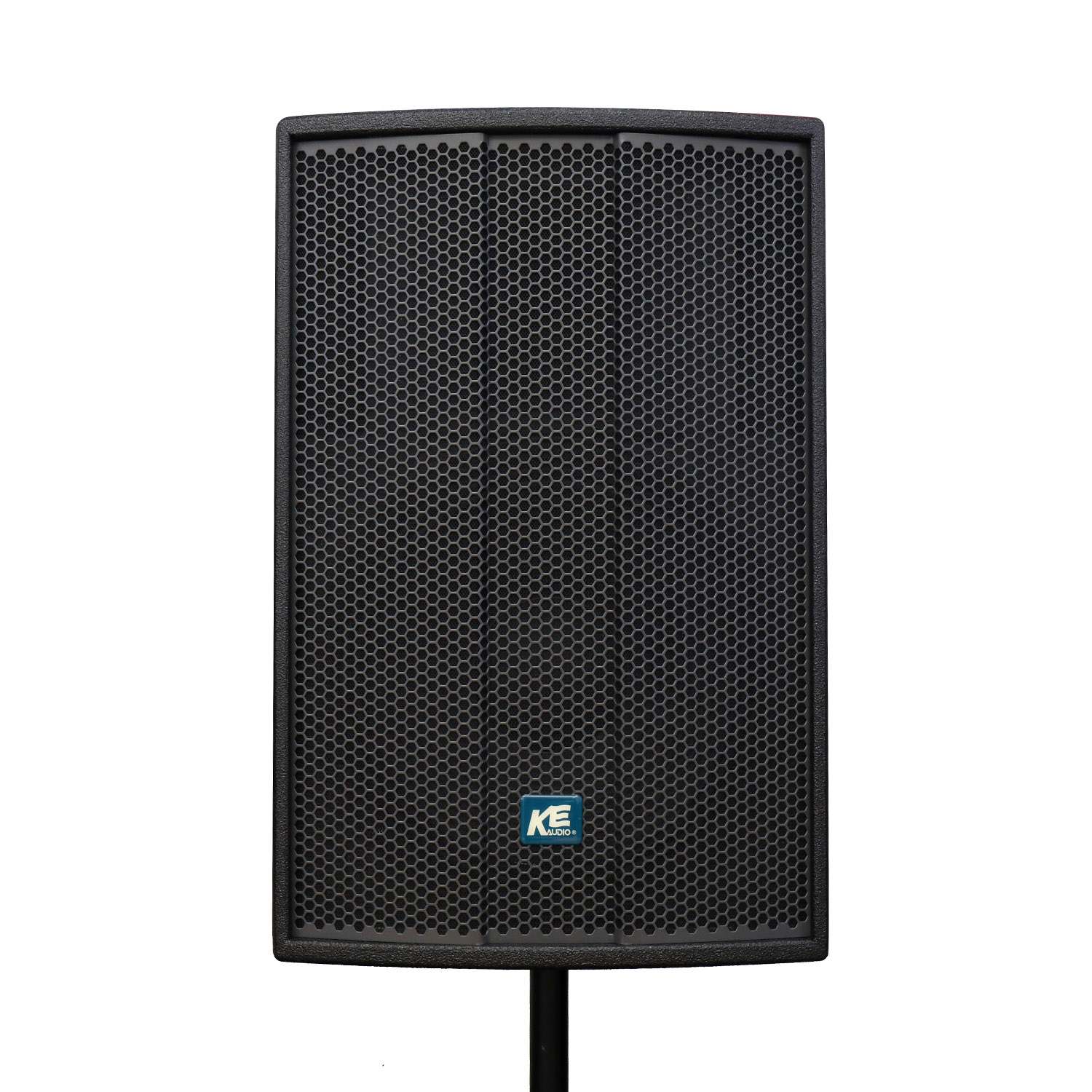

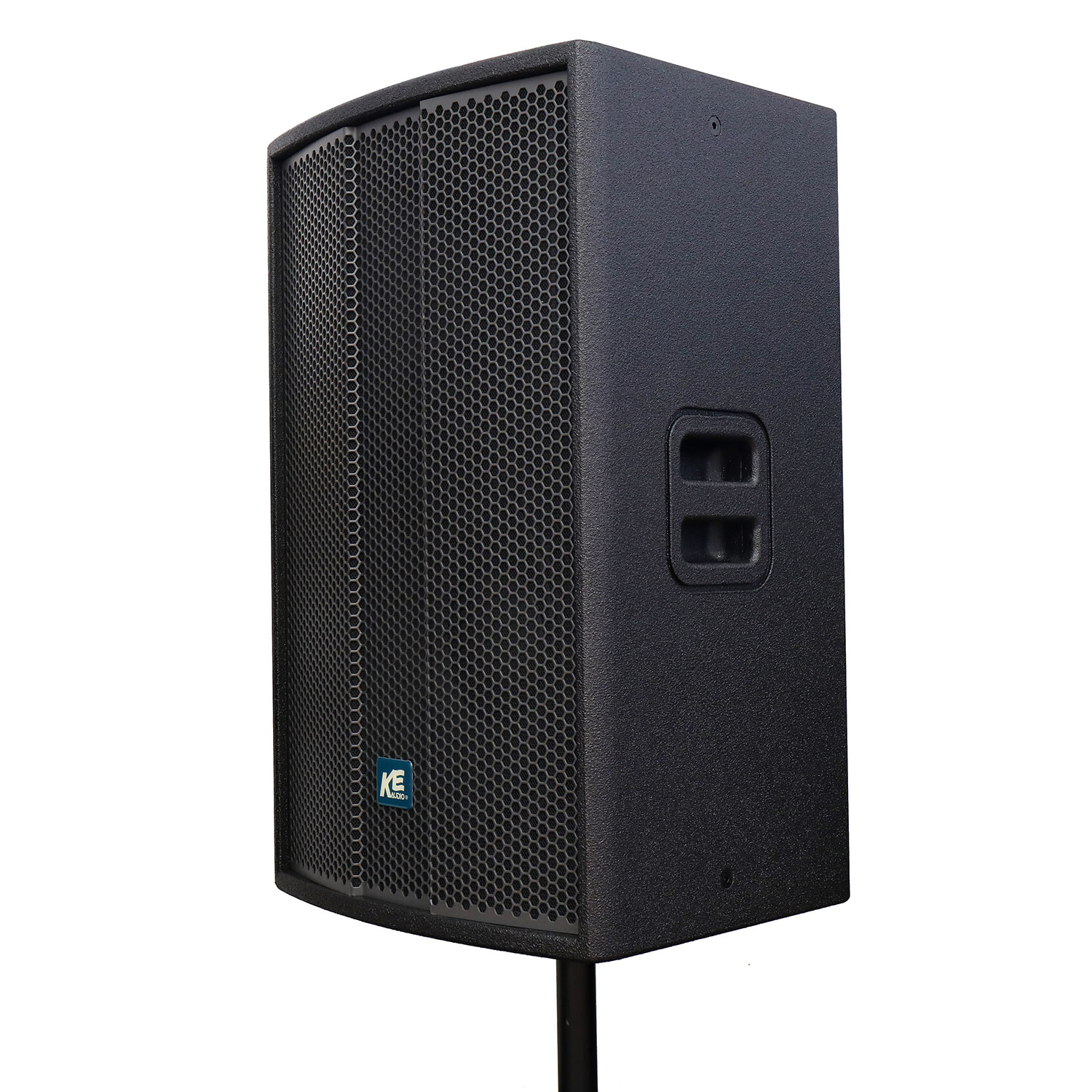

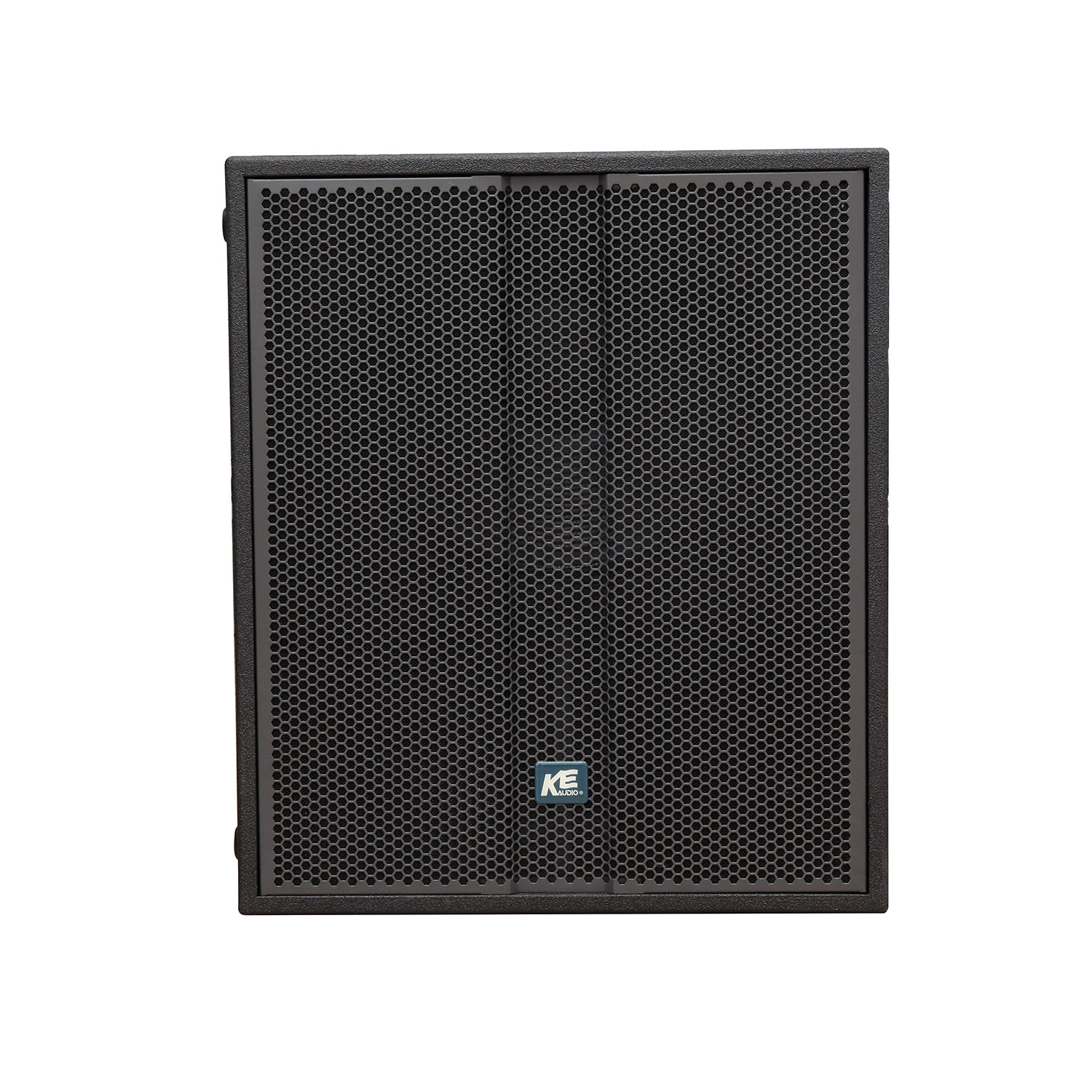

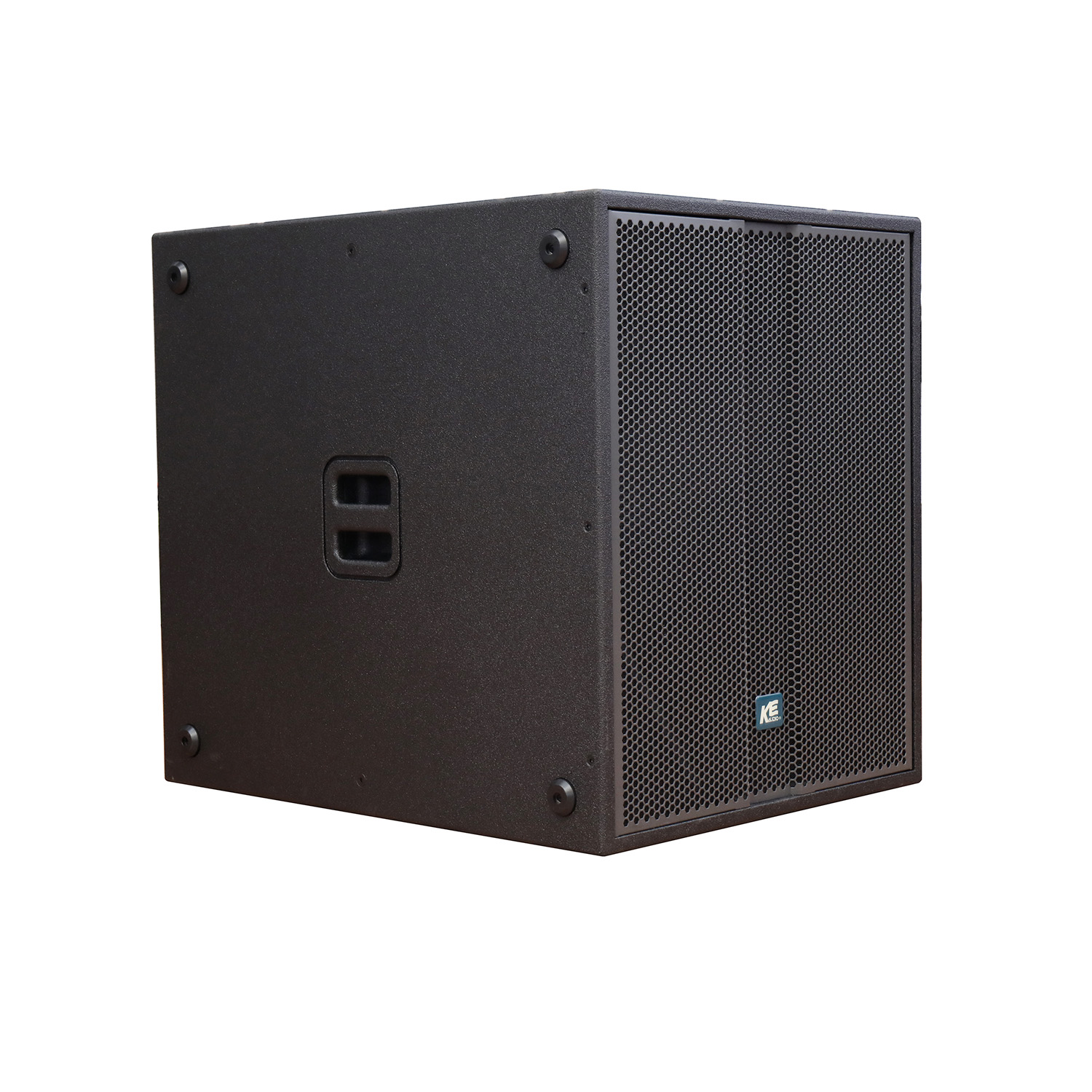

Robust Transducer Design: The 15-inch full-range (KE-15) and 18-inch LF (KE-18) drivers feature high-power voice coils and superior damping factors (>300), ensuring tight, punchy bass and rapid transient response.
Pristine Signal Integrity: With a signal-to-noise ratio exceeding 100dB (A-weighted) and THD+N below 0.05%, the audio path remains exceptionally clean, preserving the integrity of the source material.
Time and labor are critical resources on any job site. This system is meticulously designed for rapid deployment, flexible configuration, and seamless scalability.
Modular Architecture: The standard 2x full-range and 2x LF speaker combination allows for versatile physical stacking (Left/Right or Vertical Up/Down) to suit any venue geometry or stage layout.
Streamlined Cabling: Integrated Dante and IP communication significantly reduce bulky analog cable runs, lowering installation costs and simplifying the overall signal path for integrators.
Partnering with a dedicated manufacturer means securing a supply chain that prioritizes quality, consistency, and technological innovation. We understand the high stakes involved in equipping major venues and orchestrating large-scale events.
Direct-from-Source Expertise: Gain access to factory-level technical support, ensuring your deployment is optimized by the very engineers who designed the system's architecture.
Stringent Quality Control: Every amplifier and transducer undergoes rigorous stress testing to guarantee it meets our exacting performance standards before it ever reaches your loading dock.
Scalable Production Solutions: Whether you are outfitting a single premium nightclub or standardizing audio across a massive chain of entertainment venues, our manufacturing capacity easily scales to meet your exact project demands.
Continuous Innovation: Our self-developed sound quality adjustment software and proprietary DSP algorithms represent our ongoing commitment to keeping your inventory at the cutting edge of professional audio technology.
