✓ Comprehensive Hi-Fi amplifiers
✓ DSP sound effects
✓ Excellent sound quality
✓ High power output (RMS / 8Ω): 300W-3000W

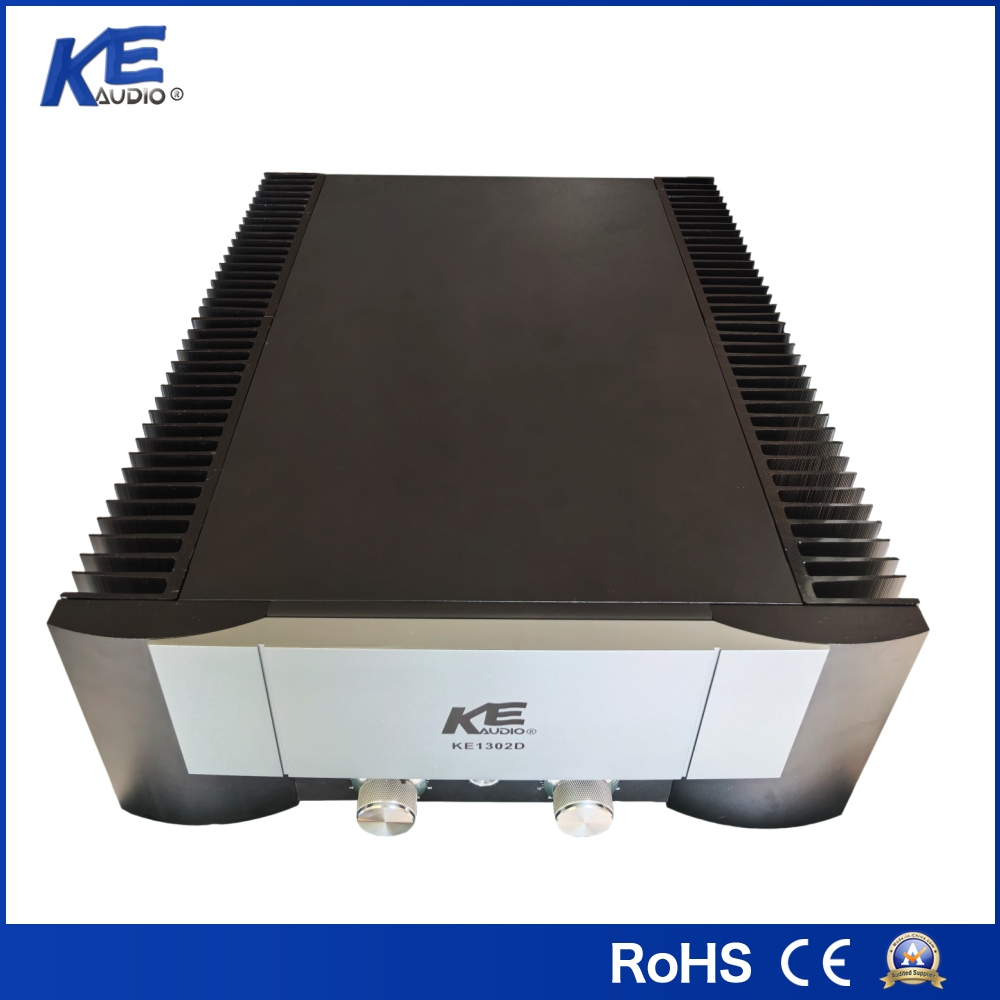

✓ Natural convection cooling with no fan noise
✓ Suitable for high-end sound reinforcement applications.
✓ High-specification conferences, recording and performance monitoring, hi-fi, home cinemas, function halls, senior clubs, and premium entertainment venues…
Model & Power | |||||||
2 channels | KE202 | KE302 | KE402 | KE502 | KE802 | KE1302 | KE2002 |
RMS / 8Ω | 200W | 300W | 400W | 500W | 800W | 1300W | 2000W |
RMS / 4Ω | 300W | 450W | 600W | 800W | 1300W | 2000W | 3200W |
RMS / 2Ω | 400W | 500W | 800W | 1000W | 1500W | 2500W | 4000W |
Weight (kg) | 16 | 17 | 18 | / | / | / | / |
Dimension (mm) | 88mm×440mm×393mm（2U） | 132mm×440mm×410mm（3U） | 176mm×440mm×420mm（4U） | ||||
Customizable single-channel or multi-channel | |||||||
Specifications | |||||||
1, Input impedance：20kΩ（Bal），10kΩ（Unbalanced） 2, Maximum input level: 25 dB (13.6 V) 3, Gain: (balanced, dB) 26/32/38/44 (unbalanced, dB) 20/26/32/38 4, Frequency response：10Hz-20kHz ±0.3dB 5, Total Harmonic Distortion(THD):＜0.03% 6, SNR：＞110dB 7, Damping factor: >300 8, Slew rate: >30 V/µs 9, Channel isolation: >80 dB 10, Common-mode rejection: >60 dB 7, Overall efficiency ：＞80% | |||||||
